SR-R5600GS
Features

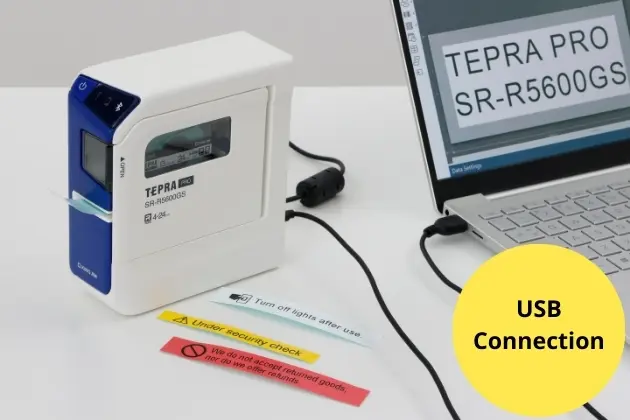

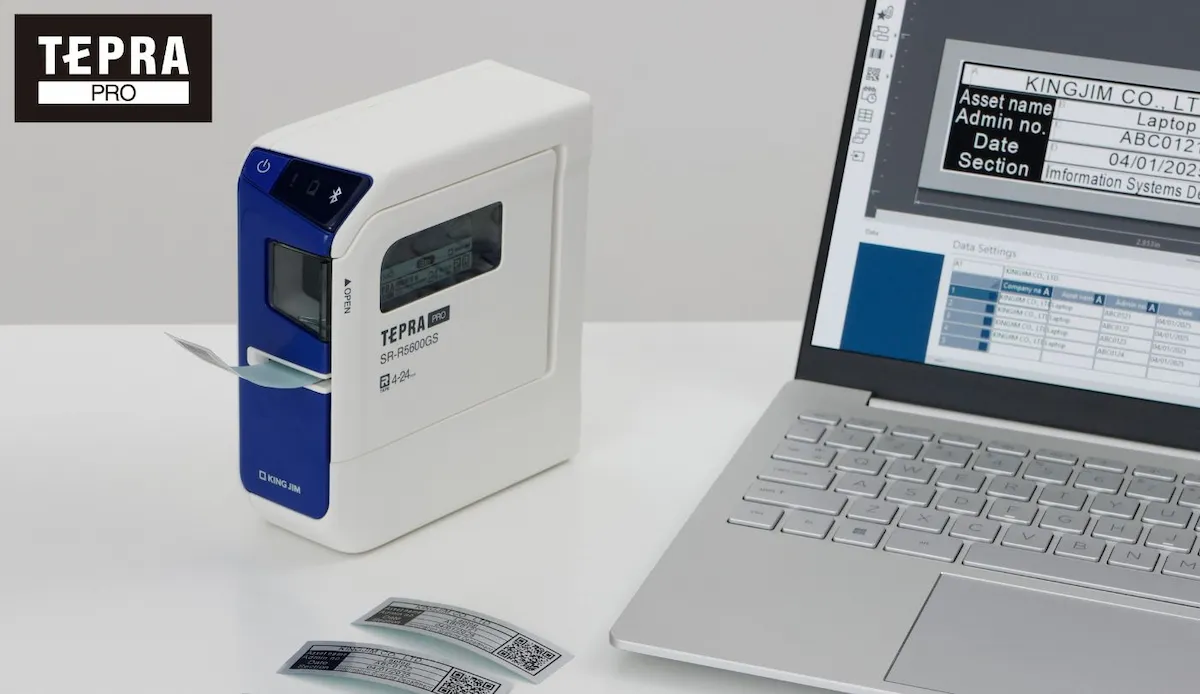

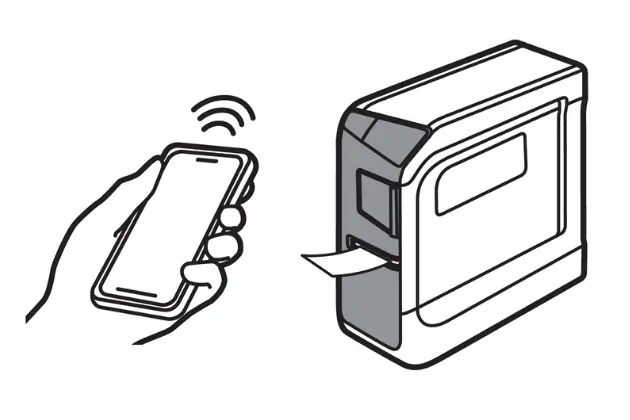

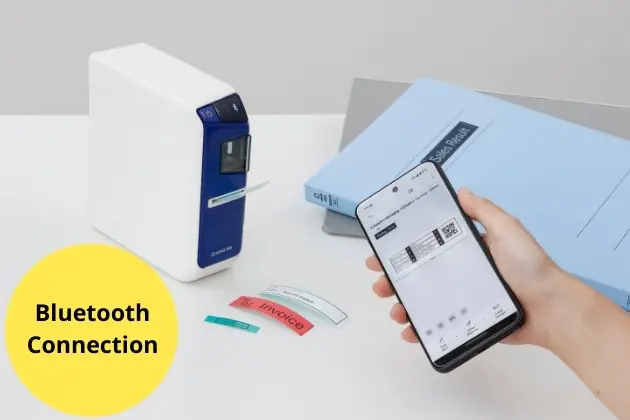

Dual connectivity for PC and smartphone
The SR-R5600GS offers two connection options: USB and Bluetooth. Whether you're using a Windows PC or an iOS/Android device, you can create high-quality, customized labels with ease and flexibility.
With Bluetooth connectivity and battery operation, you can enjoy a completely cordless labeling experience.

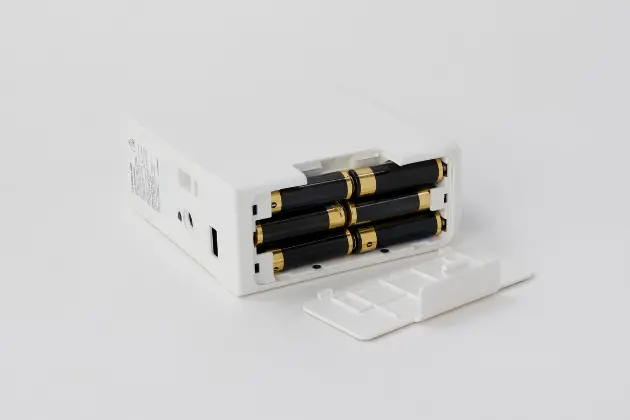

Create labels anywhere with battery power
The SR-R5600GS label printer operates on six AA alkaline batteries (sold separately), allowing you to create labels wherever you need them. It also supports power supply via the included dedicated AC adapter (AC1116-L6), giving you flexible options for both mobile and stationary use.

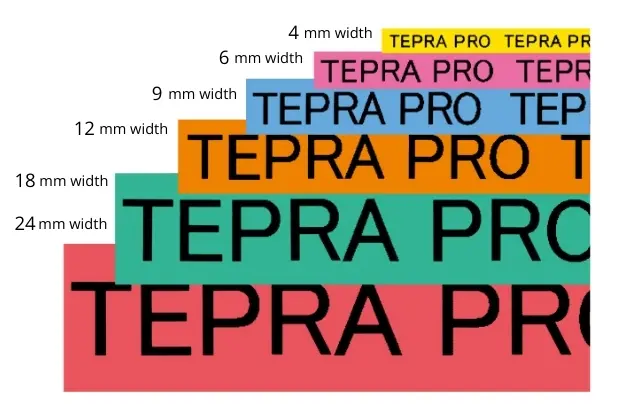

Supported 4-24 mm tape widths
The SR-R5600GS supports a wide range of label widths from ultra-narrow 4 mm to broad 24 mm and is compatible with various functional label types, making it suitable for a wide variety of purposes.

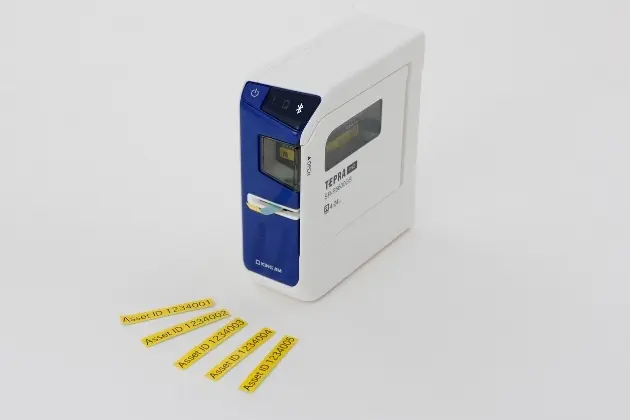

Hands-free label cutting
The SR-R5600GS features an Auto cutter that trims printed labels. This saves time and effort, especially when printing large volumes of labels, making your workflow more efficient.
Application

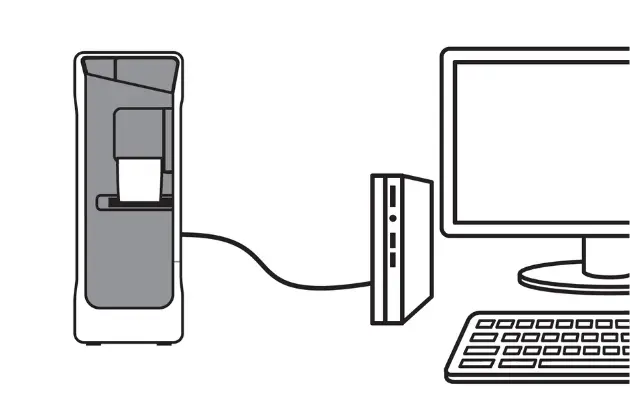

Print from Windows PC
Label editing software for Windows "TEPRA Label Editor SPC10"
Windows labeling software that enables easy, convenient, and more advanced label editing.
Easily edit label layouts and text on your PC to create labels without effort.
Freely use various fonts installed on your PC to create more attractive labels.
- *Please download the software from your Windows PC.

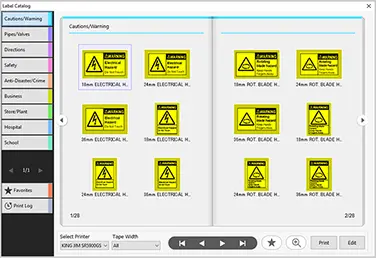

A wide variety of pre-designed label forms for different uses helps your label making. You can easily create original labels by simply replacing the text.

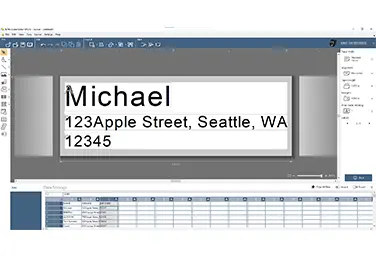

Successive Import Printing accepts spreadsheet data such as CSV or Excel.
The data will be inserted to label's layout.
Create up to 15 types of barcodes including EAN-13, QR codes, and 2D barcodes.
Print from smartphone
App Store
Google Play
Print from smartphone

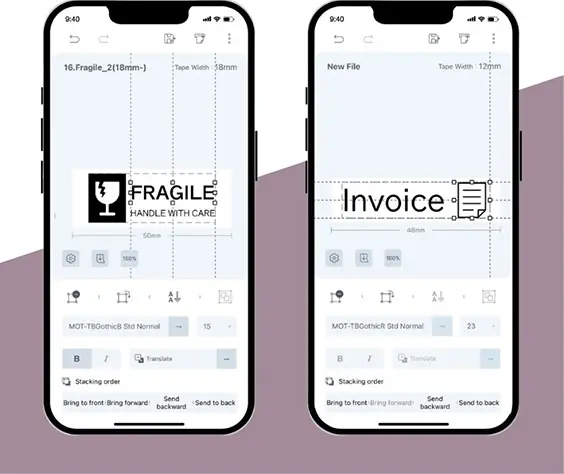

Label editing application for iOS/Android "TEPRA LINK2"
This labeling app for iOS and Android allows quick and simple label creation. Label editing is intuitive, by "Snap to grid", "Guide lines", "Rotation", "Size change", and more.
Create labels whenever necessary with "TEPRA". You can print labels remotely via wireless connection.

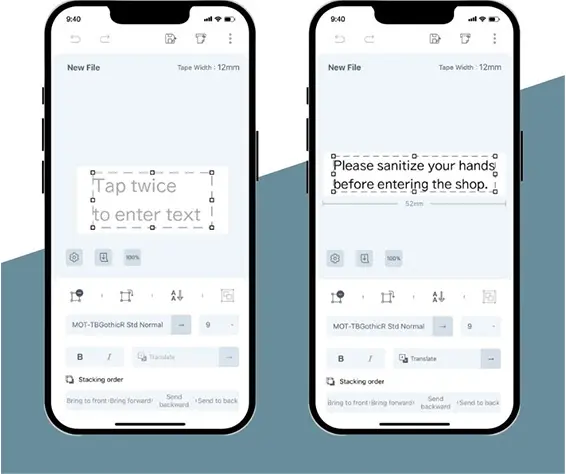

Create labels intuitively by "Snap to grid", Rotation", "Size change", etc.

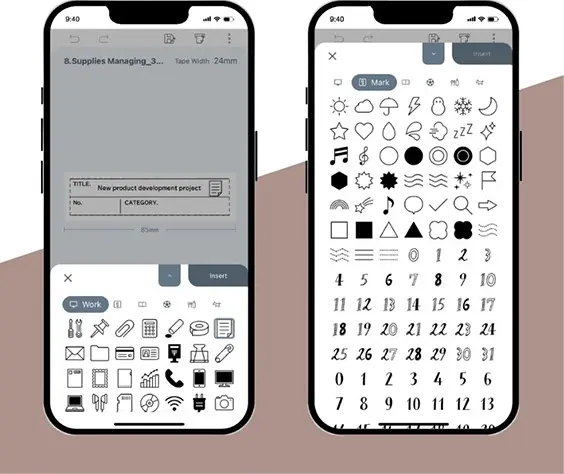

Including flat designs and conventional "TEPRA" symbols and emojis.
Tapes

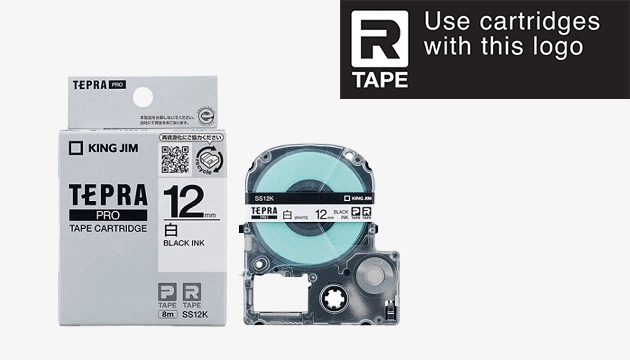

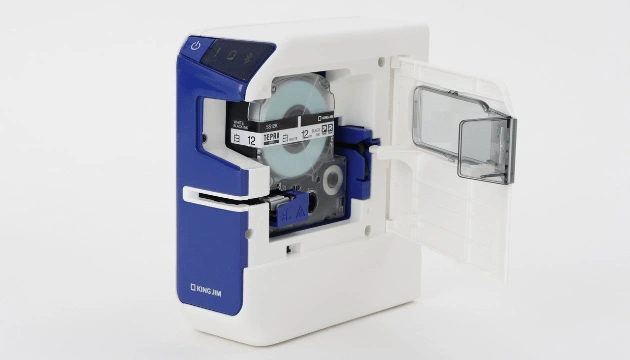

Compatible Tapes: TEPRA PRO Tape
A full lineup of creative and functional tapes is available to meet every usage.
SR-R5600GS is compatible with a wide range of tape widths from 4 mm to 24 mm.
- *SR-R5600GS is not compatible with TEPRA ”Lite” tapes. Please be sure to use TEPRA ”PRO” tapes.

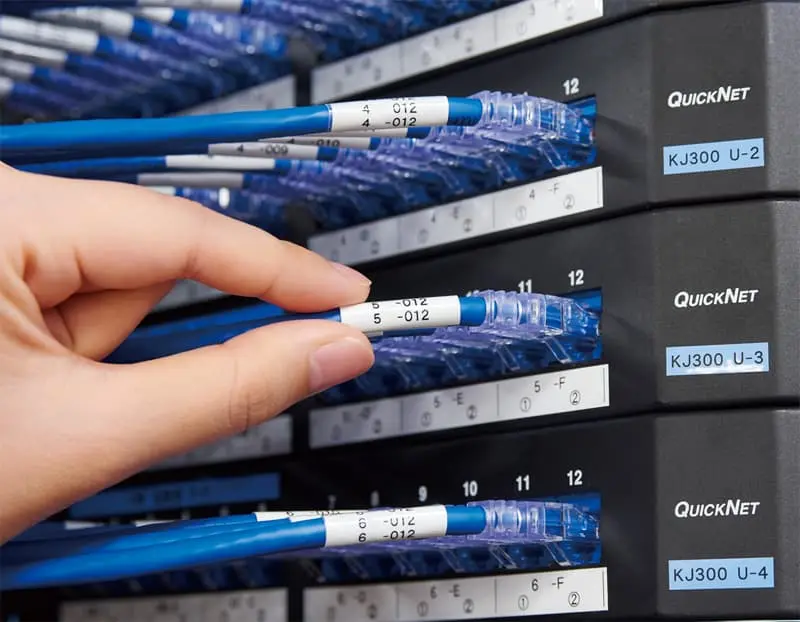

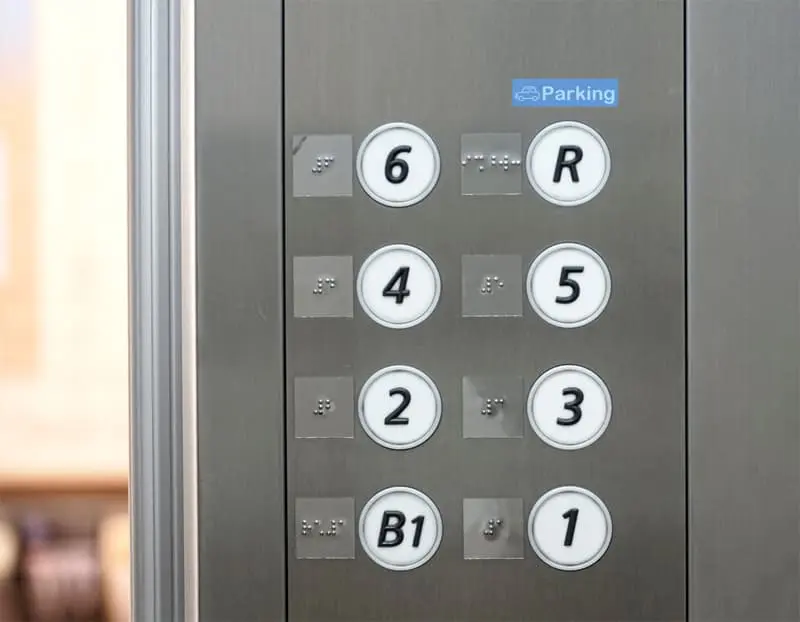

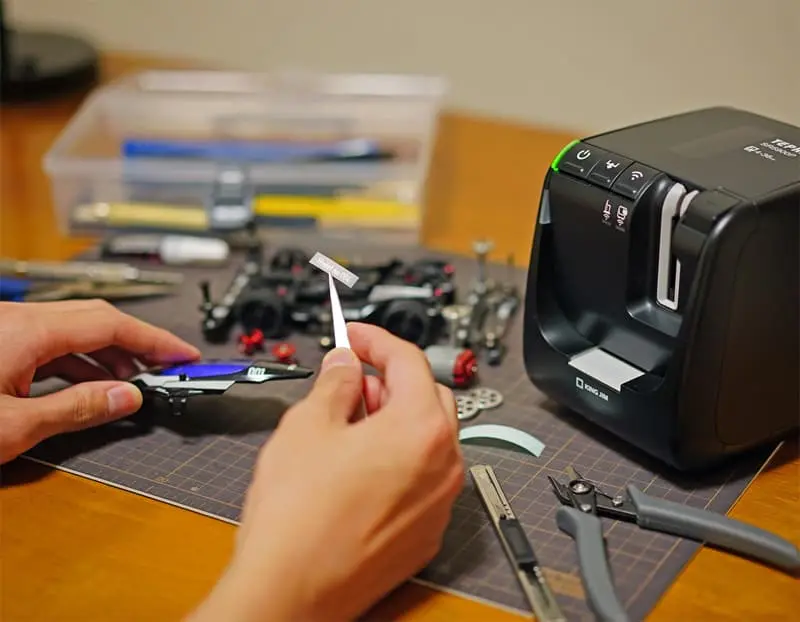

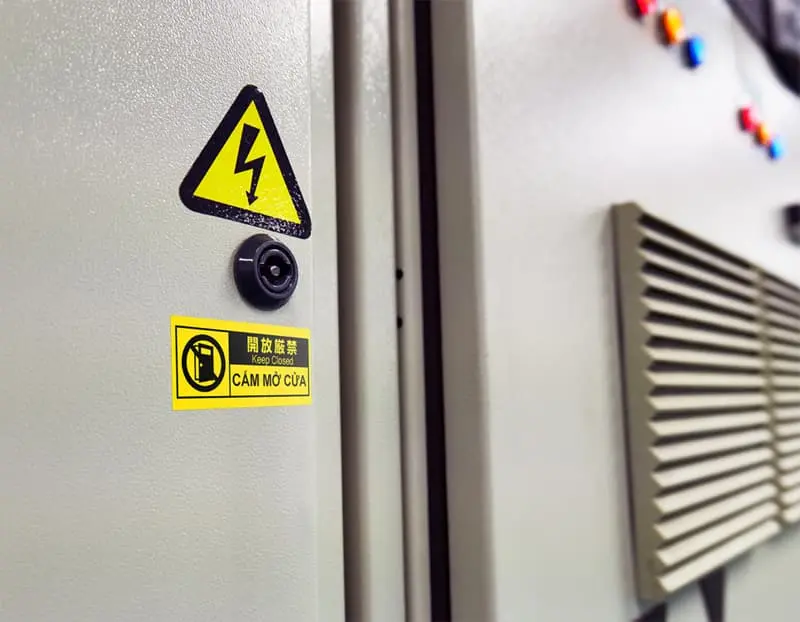

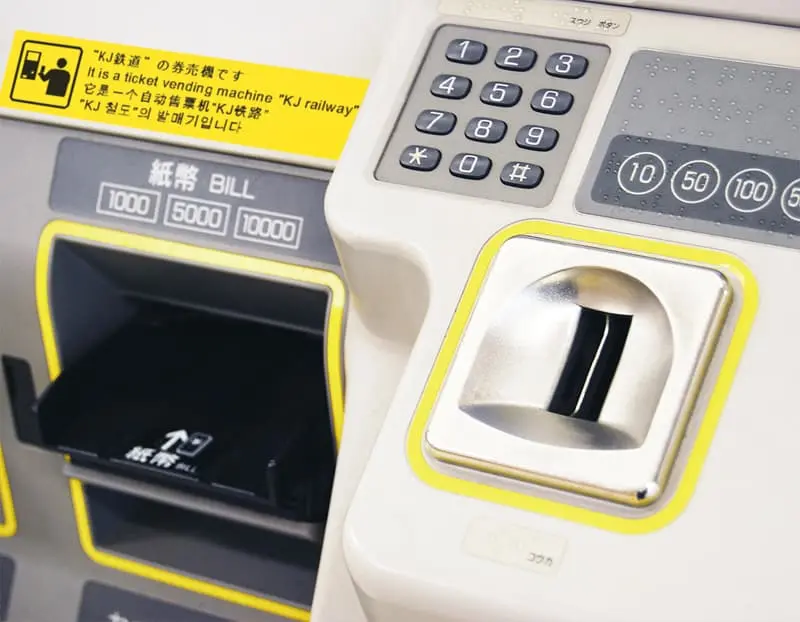

Example of Use
Specifications
- Item No.
- SR-R5600GS
- Dimensions
- Approx. W54 x D132 x H146 mm
- Weight
- Approx. 430 g
- Printing method
- Thermal transfer printing method
- Print head configuration
- Thermal head 128 dots, 180 dpi
- Maximum print width
- 18.1mm (When printing on 24 mm width tape)
- Supported tape width
- 4, 6, 9, 12, 18, 24 mm
- Compatible tapes
- TEPRA PRO cartridge
- Cutter
- Auto cutter
- Power
- AC adapter provided (AC1116-L6),
6 AA alkaline batteries (Sold separately)
- Interface
- USB, Bluetooth
- Package contents
- SR-R5600GS, AC adapter (AC1116-L6), Type C AC adapter power cable, USB cable (A-C type), Basic Operation Manual (with Warranty)
- Do not use any AC adapter other than the dedicated AC adapter.
- Use TEPRA PRO tape cartridge with this printer.
- Depending on the material of the surface or environmental conditions involved in the adhesion of the tape, the glue from the label could stick to and damage surfaces without the possibility for removal.
- The color of the product may look different from the actual color.
- The specifications and designs are subject to change without notice.
- This product can be sold and used in Vietnam, Cambodia, Thailand and Philippines. Contact us to inquire about purchase and use in other countries.
