SR5900GS
![](/sp/english/sr5900gs/img/index_im01.jpg)
What is "TEPRA" PRO?
The "TEPRA" PRO label printer series fits in with any scenario at any location, including offices, factories, warehouses, retail stores, and public facilities, to create file folder labels, equipment management labels, barcodes, warning labels, and more.

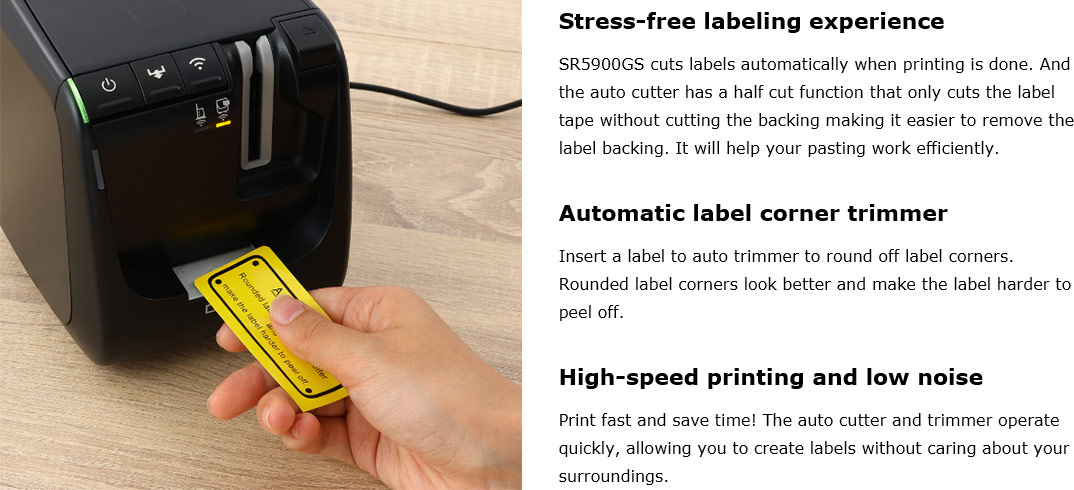

Features
Movie
Applications
![](/sp/english/sr5900gs/img/index_im06.jpg)
![](/sp/english/sr5900gs/img/index_im07.jpg)
Print from Windows PC
Label editing software for Windows "TEPRA Label Editor SPC10"
Windows labeling software that enables easy, convenient, and more advanced label editing.
Easily edit label layouts and text on your PC to create labels without effort.
Freely use various fonts installed on your PC to create more attractive labels.
- *Please download the software from your Windows PC.
![](/sp/english/sr5900gs/img/index_im08.jpg)

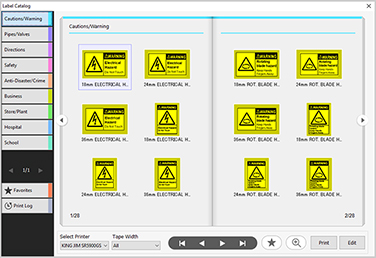

A wide variety of pre-designed label forms for different uses helps your label making. You can easily create original labels by simply replacing the text.
![](/sp/english/sr5900gs/img/index_im09.jpg)

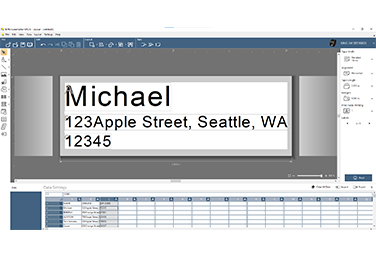

Successive Import Printing accepts spreadsheet data such as CSV or Excel.
The data will be inserted to label's layout.
![](/sp/english/sr5900gs/img/index_im10.jpg)
Create up to 15 types of barcodes including EAN-13, QR codes, and 2D barcodes.
![](/sp/english/sr5900gs/img/index_im17.jpg)

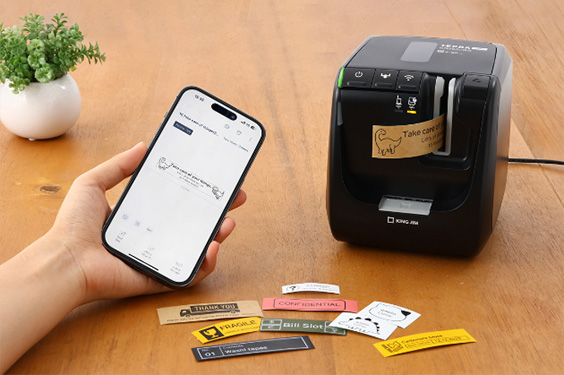

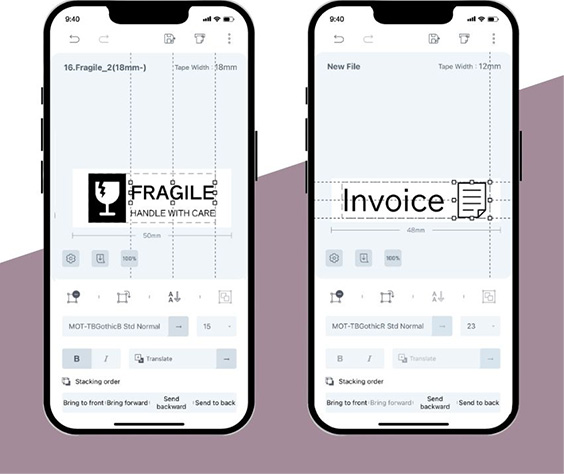

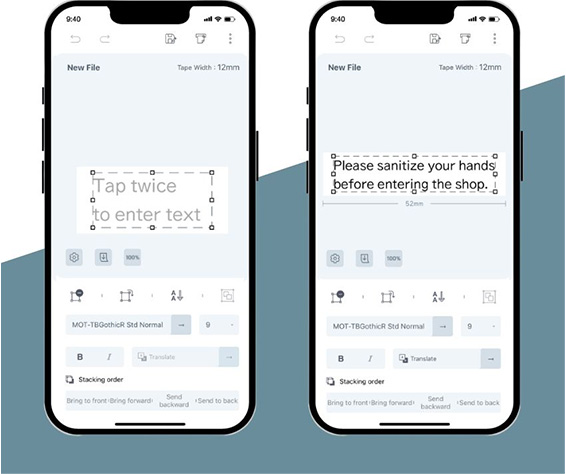

Create labels whenever necessary with "TEPRA". You can print labels remotely via wireless connection.
![](/sp/english/sr5900gs/img/index_im18.jpg)
Create labels intuitively by "Snap to grid", Rotation", "Size change", etc.
![](/sp/english/sr5900gs/img/index_im19.jpg)

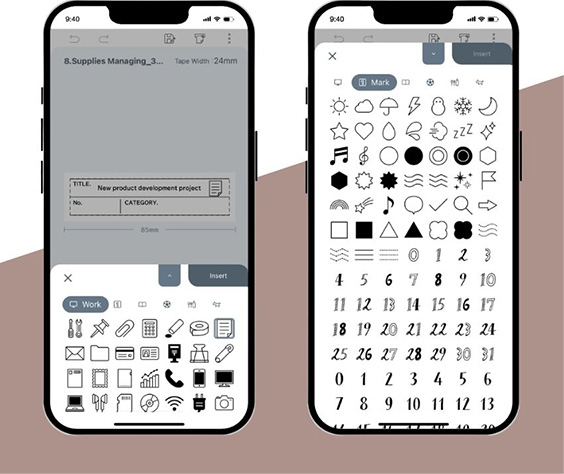

Including flat designs and conventional "TEPRA" symbols and emojis.
Tapes
![](/sp/english/sr5900gs/img/index_im20.jpg)
"TEPRA" PRO Tapes
A full lineup of creative and functional tapes is available to meet every usage. SR5900GS is compatible with a wide range of tape widths from 4 mm to 36 mm.
- *SR5900GS is not compatible with TEPRA Lite tapes. Please be sure to use TEPRA PRO tapes.
"TEPRA" PRO Tapes
![](/sp/english/sr5900gs/img/index_im20.jpg)
A full lineup of creative and functional tapes is available to meet every usage. SR5900GS is compatible with a wide range of tape widths from 4 mm to 36 mm.
- *SR5900GS is not compatible with TEPRA Lite tapes. Please be sure to use TEPRA PRO tapes.
![](/sp/english/sr5900gs/img/index_im21.jpg)

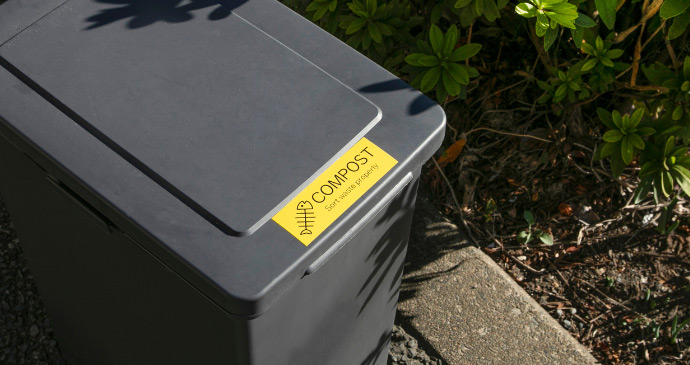

Light-Fast Label
Labels resist fading and aging, making them convenient for outdoor use. Flexibility lets labels resist wrinkling when placed on curved surfaces.
![](/sp/english/sr5900gs/img/index_im22.jpg)
![](/sp/english/sr5900gs/img/index_im23.jpg)
![](/sp/english/sr5900gs/img/index_im24.jpg)

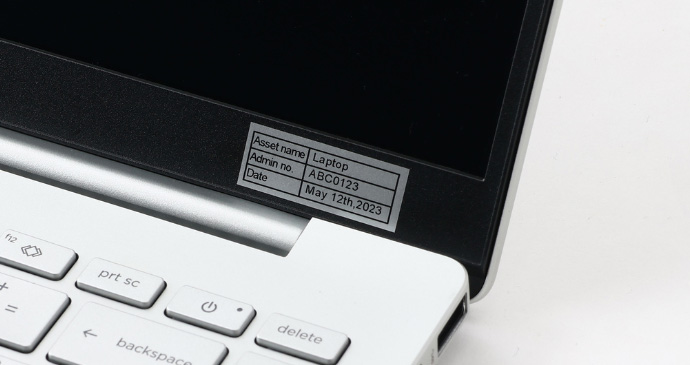

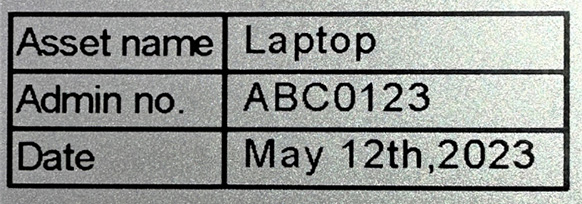

Organizing Label
Silver tape creates an aluminium look, blending in with the office environment even when affixed to numerous items. Barcode reader compatibility helps you to manage equipments with barcodes!
![](/sp/english/sr5900gs/img/index_im25.jpg)
![](/sp/english/sr5900gs/img/index_im26.jpg)
![](/sp/english/sr5900gs/img/index_im27.jpg)

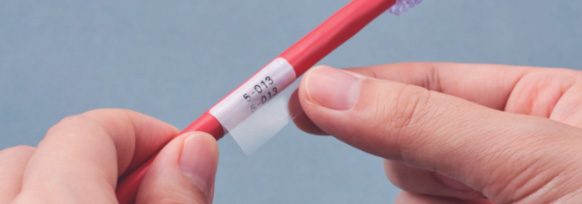

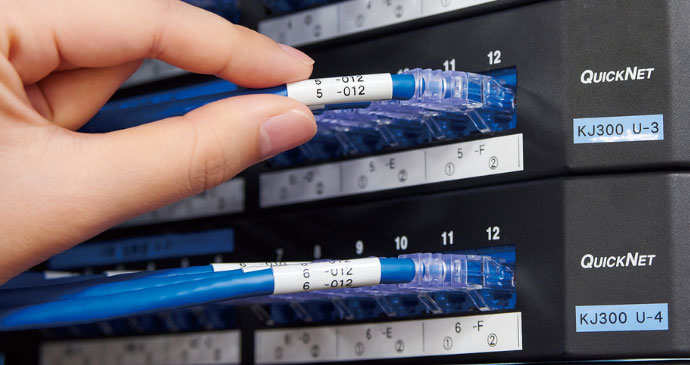

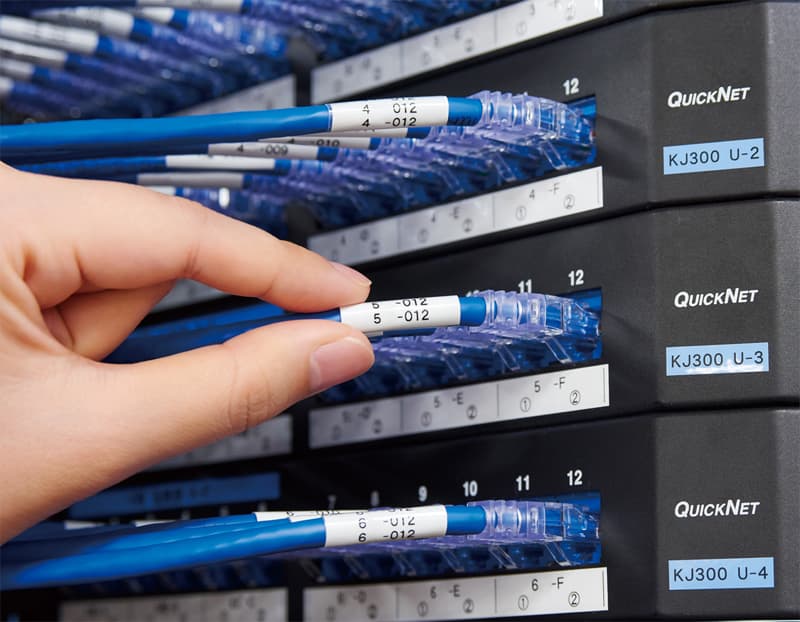

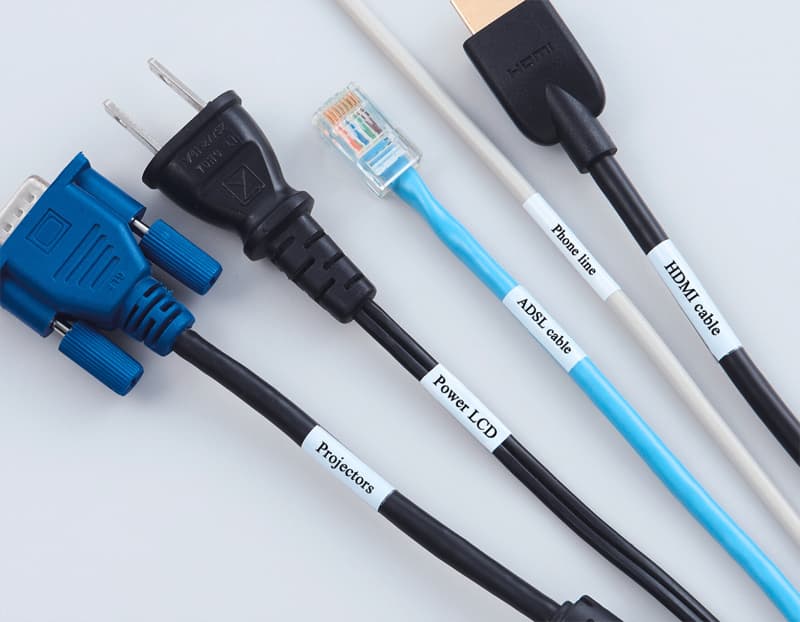

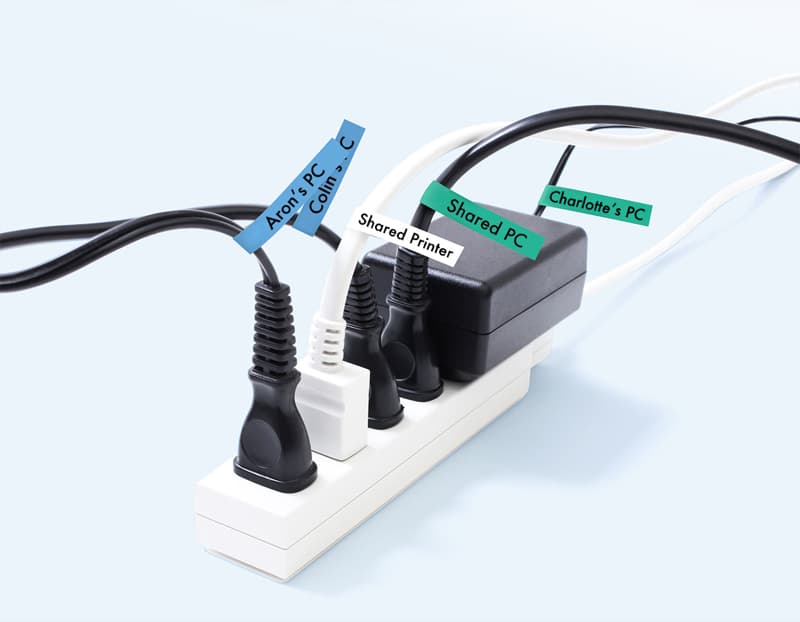

Cable Label
It's called self-laminated type, which has a blank part to be printed and a transparent part to wrap around. Attachment to messy cables prevents mistaken connections and facilitates maintenance.
![](/sp/english/sr5900gs/img/index_im28.jpg)
![](/sp/english/sr5900gs/img/index_im29.jpg)

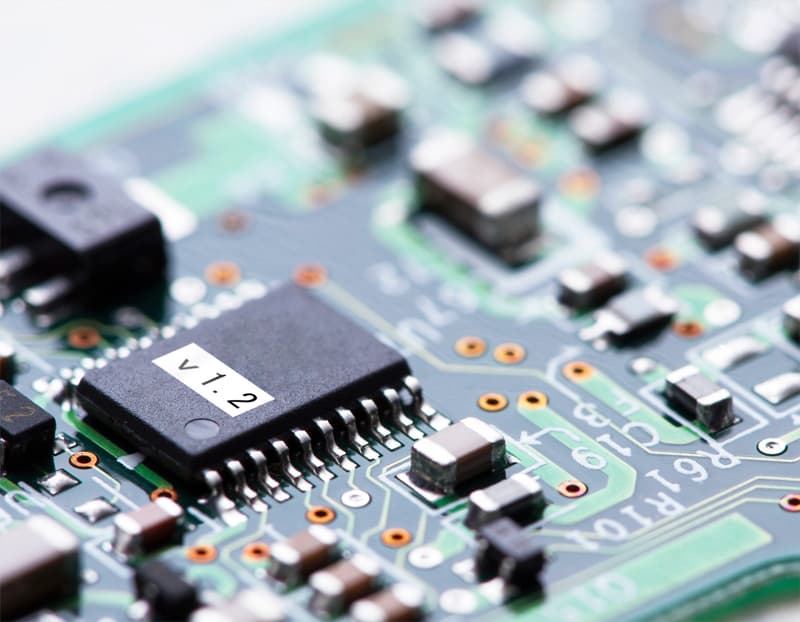

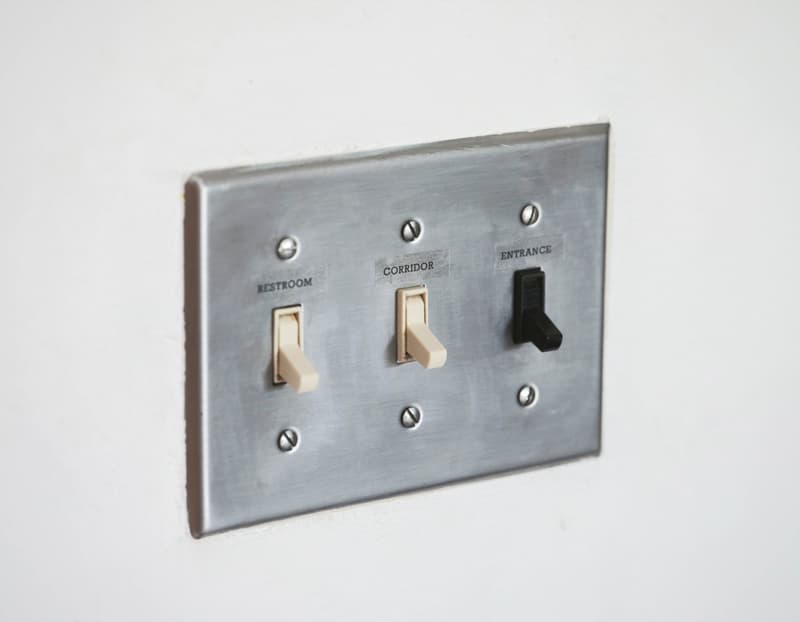

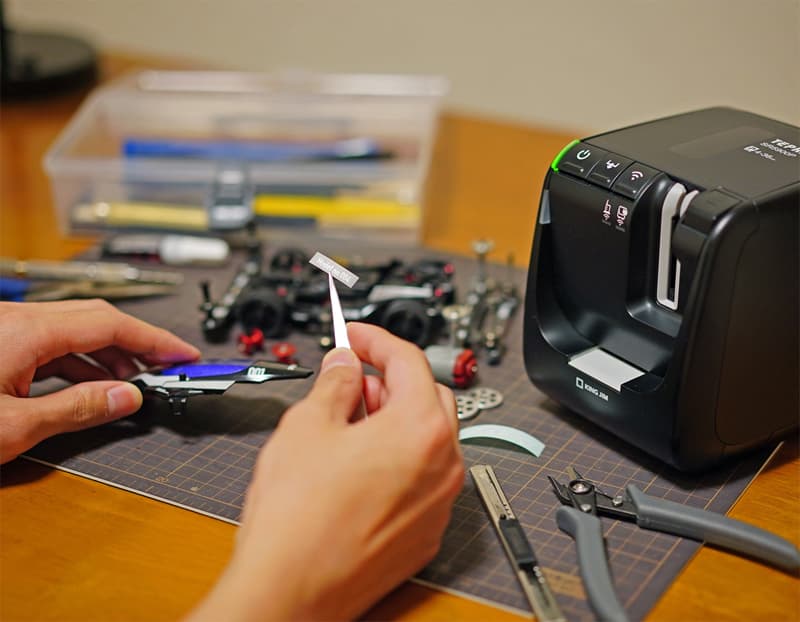

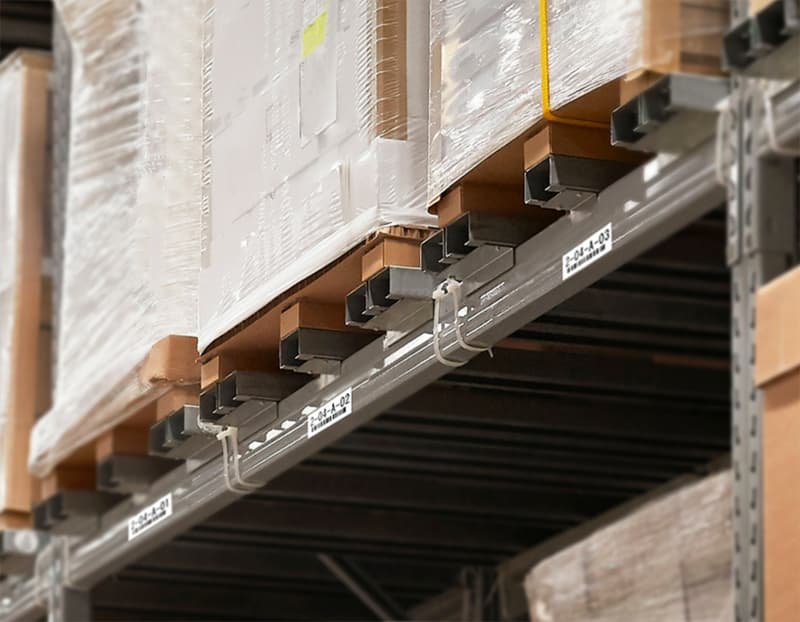

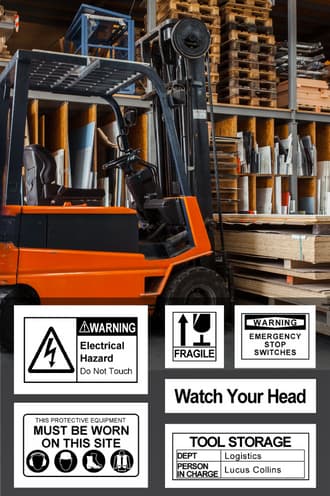

Example of Use
Specifications
- Item No.
- SR5900GS
- Dimensions
- Approx. 123(W)×153(D)×139(H) mm
- Weight
- Approx. 1,100 g
- Printing method
- Thermal transfer printing method
- Print head configuration
- Thermal head 384 dots, 360 dpi
- Maximum print speed
- 35 mm/s (When printing on 4-18 mm width tape)
- Maximum print width
- 27.1 mm (When printing on 36 mm width tape)
- Supported tape width
- 4, 6, 9, 12, 18, 24, 36 mm
- Compatible tapes
- "TEPRA" PRO cartridge
- Cutter
- Auto cutter with full and half cut function
- Power
- AC adapter provided (AS1527J)
- Interface
- USB 2.0 Full-speed,
wired LAN (10/100BASE-TX),
wireless LAN (Infrastructure mode: IEEE 802. 11b/g/n, Access point mode: IEEE 802.11g/n)
- Package contents
- SR5900GS, AC adapter provided (AS1527J), AC adapter power cable, Sample tape cartridge, USB cable, User's manual (with warranty)
- Do not use any AC adapter or power cable other than the dedicated AC adapter and power cable.
- Use "TEPRA" PRO tape cartridge with this printer.
- Depending on the material of the surface or environmental conditions involved in the adhesion of the tape, the glue from the label could stick to and damage surfaces without the possibility for removal.
- The color of the product may look different from the actual color.
- The specifications and designs are subject to change without notice.
- This product can be sold and used in Vietnam, the Philippines, and Singapore. Contact us to inquire about purchase and use in other countries.
