Manage your business card collection using dial control MEQRU® Digital Name Card Holder "MEQRU" MQ10 Price: 27,000 yen + consumption tax

Register in no time. Search and browse easily by turning the dial.

Play the special movie

Scan and save.

Register new busniess cards with ease. Simply insert a name card into the device and press the Enter button to begin scanning. You can save the scanned name card data by company name, person's name, and so on. You can also access cards that are most frequently used by adding them to your favorite list.

Easy Entry

Registering starts as soon as you insert a name card.

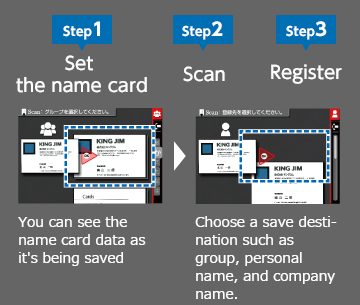

Step1 Set the name card, Step2 Scan, Step3 Register You can see the name card data as it's being saved Choose a save destination such as group, personal name, and company name.

Turn and search.

Search and browse business cards by simply rotating the dial. Instantaneous display enables smooth nevigation of saved card data using only one hand. Rotate the dial to search and browse through saved business cards by alphabetical order, saved date etc. Name card data are saved as images, which allows retention of original or additional details, such as hand written-notes.

5 simple ways to search

Store and relax.

Use a 4-digit numeric password to protect your privacy.

Vast capacity

A scanning speed of 6 seconds or less per card enables speedy digital conversion of of business cards.

Max. card scan capacity Single-sided About 5,000 Double-sided: about 2,500 *Approximations only

Compact and powerful.

The space-saving design enables you to register, manage, and search for your name cards all in one unit, right at your desk.

Specifications

Digital Name Card Holder "MEQRU"

Product name Digital Card Holder MEQRU
Product no. MQ10 BLACK
Main unit color Navy-black
JAN code 4971660771028
Screen 3.5 inch TFT color LCD HVGA (320 x 480 dots)
Scanner type Sheet-feed scanner (one-side reading)
Scanning size Minimum: 26mm x 75mm, maximum: 54mm x 90mm
Scannable
sheet thickness
Minimum 0.1mm, maximum 0.43mm
Sensor Color CIS sensor
Light source LED
Resolution 300dpi
Scanning speed 6 sec. or less per card
Max. scan capacity 5,000(single side) / 2,500(double sides)
(Max. card scan capacity amounts, which are calculated at 92 kb per card side, are for reference purposes only.
These numbers may vary depending on product usage conditions, etc.)
Power source AC adapter (AS0510JB)
Rated voltage AV 100-240V
Maximum power consumption About 5.1W
Power consumption
during waiting
(when the screen is off)
About 2.9W
Interface USB 2.0 (micro B type)
(USB cable is sold separately. Please use a commercially available cable with data transmission capabilities;
USB cables designed for charging purposes only are not compatible.)
External dimensions About. 139 (W) x 125 (D) x 129 (H) mm
Weight About. 325g(not including AC adapter)
Operation
environment
Temp.: 5 ~ 35°C
Hum.: 30 ~ 80% (condensation-free environment)
Storage
environment
Temp.: -10 ~ 55°C
Hum.: 5 ~ 80% (condensation-free environmentn)
Contents of the set MEQRU main unit, AC adapter (AS0510JB), calibration card, cleaning card, Quick Guide, instruction manual, warranty card
User's Manual MEQRU MQ10 User's Manual
Quick Guide MEQRU MQ10 Quick Guide
