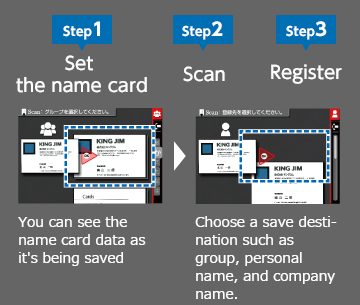

Register new busniess cards with ease. Simply insert a name card into the device and press the Enter button to begin scanning. You can save the scanned name card data by company name, person's name, and so on. You can also access cards that are most frequently used by adding them to your favorite list.
Search and browse business cards by simply rotating the dial. Instantaneous display enables smooth nevigation of saved card data using only one hand. Rotate the dial to search and browse through saved business cards by alphabetical order, saved date etc. Name card data are saved as images, which allows retention of original or additional details, such as hand written-notes.
Use a 4-digit numeric password to protect your privacy.
The space-saving design enables you to register, manage, and search for your name cards all in one unit, right at your desk.
Product name | Digital Card Holder MEQRU |
---|---|
Product no. | MQ10 BLACK |
Main unit color | Navy-black |
JAN code | 4971660771028 |
Screen | 3.5 inch TFT color LCD HVGA (320 x 480 dots) |
Scanner type | Sheet-feed scanner (one-side reading) |
Scanning size | Minimum: 26mm x 75mm, maximum: 54mm x 90mm |
Scannable sheet thickness |
Minimum 0.1mm, maximum 0.43mm |
Sensor | Color CIS sensor |
Light source | LED |
Resolution | 300dpi |
Scanning speed | 6 sec. or less per card |
Max. scan capacity | 5,000(single side) / 2,500(double sides) (Max. card scan capacity amounts, which are calculated at 92 kb per card side, are for reference purposes only. These numbers may vary depending on product usage conditions, etc.) |
Power source | AC adapter (AS0510JB) |
Rated voltage | AV 100-240V |
Maximum power consumption | About 5.1W |
---|---|
Power consumption during waiting (when the screen is off) |
About 2.9W |
Interface | USB 2.0 (micro B type) (USB cable is sold separately. Please use a commercially available cable with data transmission capabilities; USB cables designed for charging purposes only are not compatible.) |
External dimensions | About. 139 (W) x 125 (D) x 129 (H) mm |
Weight | About. 325g(not including AC adapter) |
Operation environment |
Temp.: 5 ~ 35°C |
Hum.: 30 ~ 80% (condensation-free environment) | |
Storage environment |
Temp.: -10 ~ 55°C |
Hum.: 5 ~ 80% (condensation-free environmentn) | |
Contents of the set | MEQRU main unit, AC adapter (AS0510JB), calibration card, cleaning card, Quick Guide, instruction manual, warranty card |
User's Manual | MEQRU MQ10 User's Manual |
Quick Guide | MEQRU MQ10 Quick Guide |
